D&K Transport

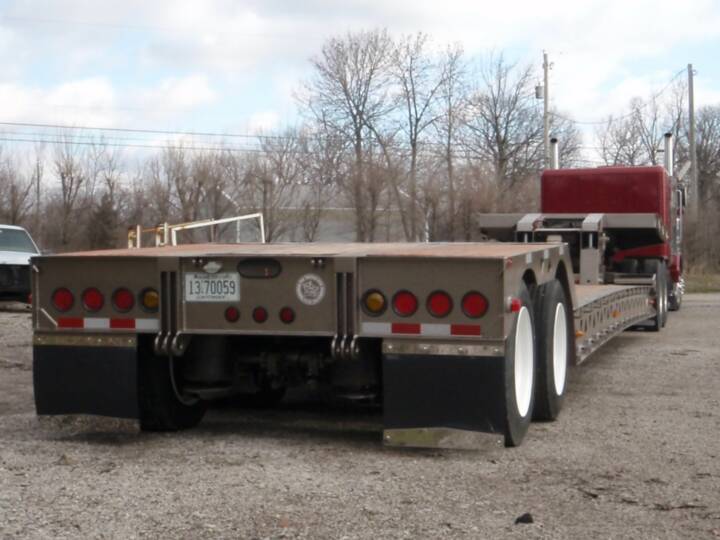

Trail King Hydraulic Detach Complete Rebuild
  As you can see in the video this was a large scale project.  We were able to save Doug Wulff owner of D&K Transport thousands of dollars vs. replacing this self contained hydraulic detach trailer.

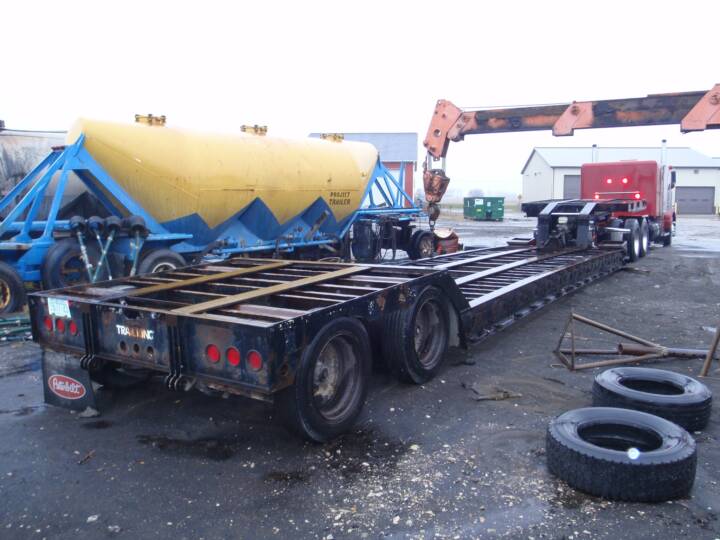

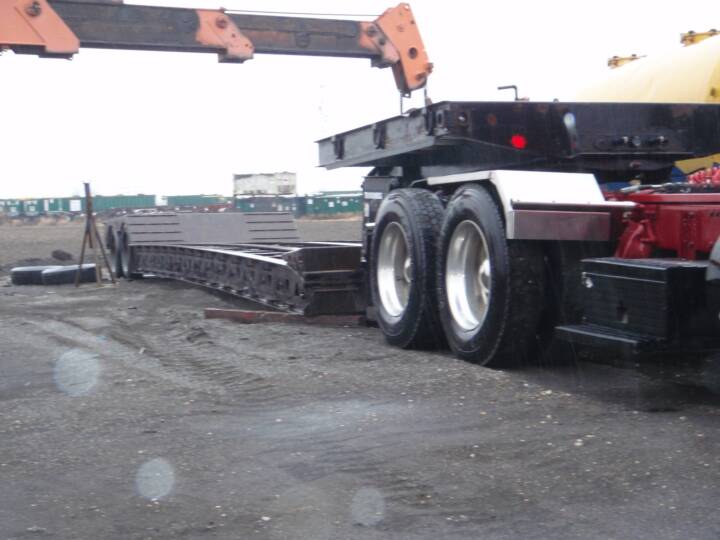

This trailer was badly rusted and the thin "Jr" I beams were all in need of replacing, but the frame rails and suspension were solid.
THIS IS ONE BADD ASS LOWBOY

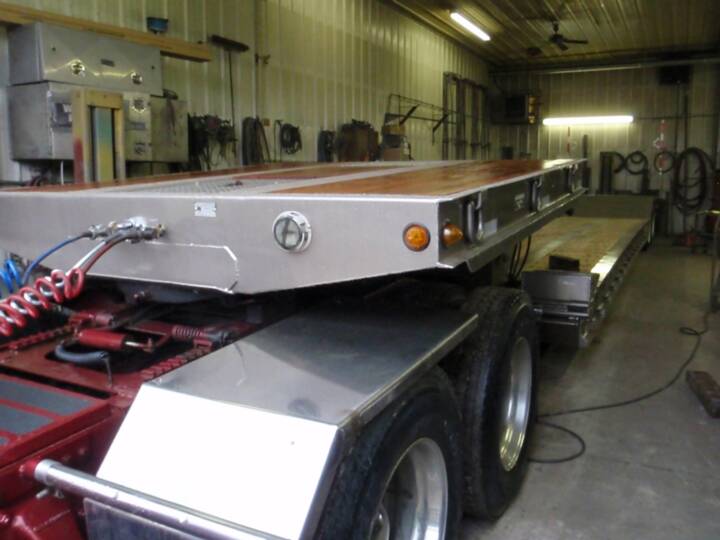

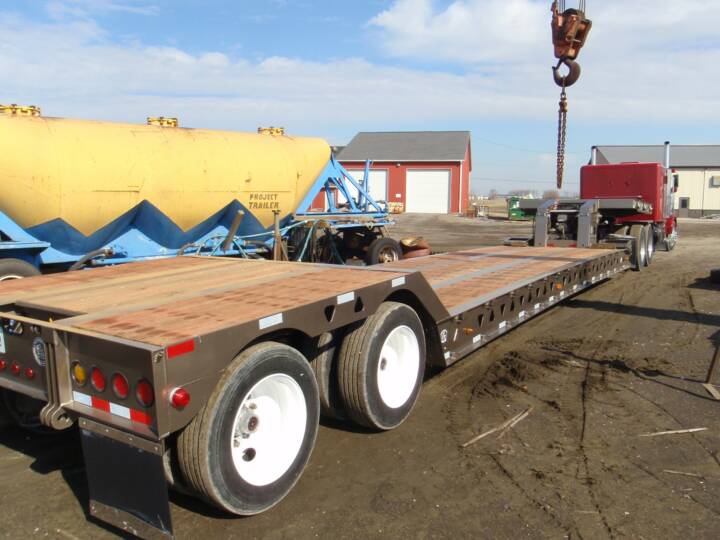

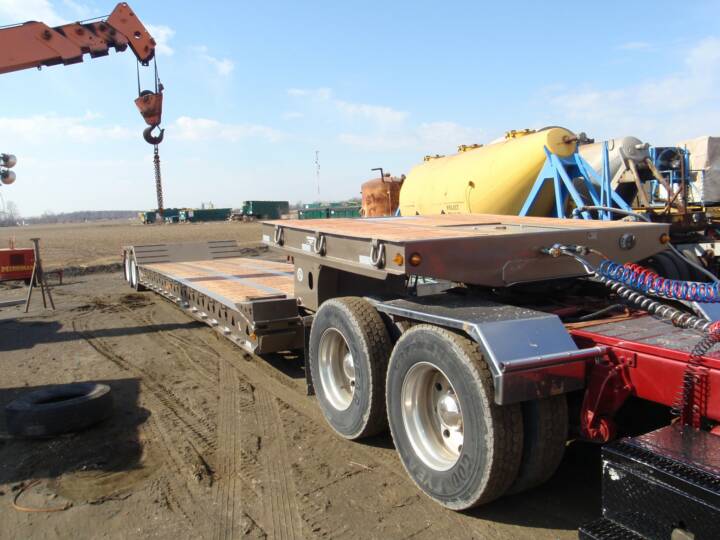

Stronger Than New

MAJOR REPAIRS BREAKDOWN

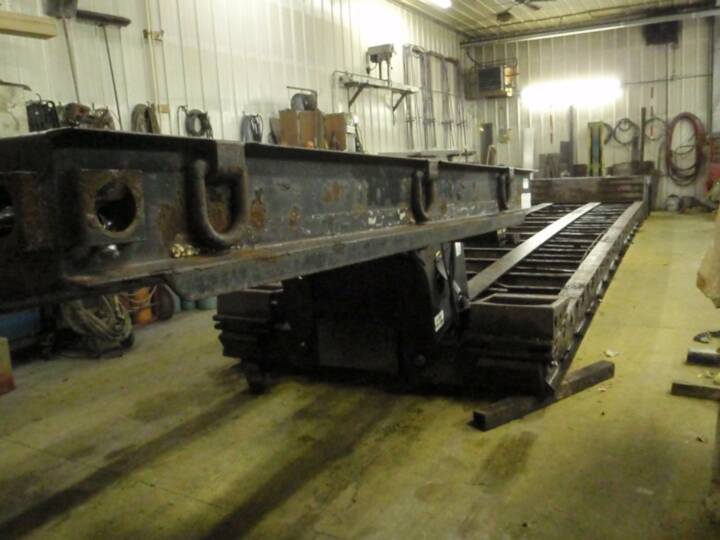

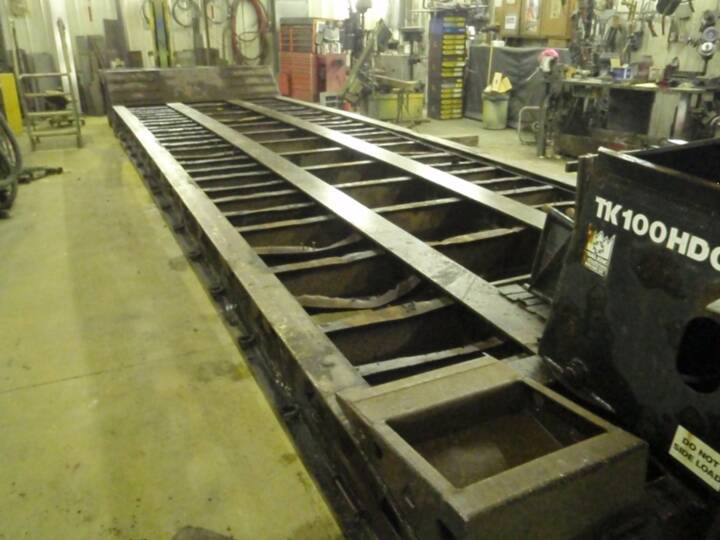

  • Replacement of ALL of the badly rusted and broken floor deck crossmembers
  • Rebuild axle spindles with new matched ,grease packed, Timken bearings
  • Replace bad wiring
  • Repair Upper Coupler
  • Rebuild complete air system for optimum performance
  • Simplify air brake system
  • Remove engine and paint engine compartment
  • Repair all engine controls
  • Complete sandblasting
  • Industrial Epoxy - Industrial Polyurethane-Automotive Metallic high gloss outer topcoat paint job
  • Complete new Apitong flooring
  • Rear center floor section removable to gain access to all valves and suspension with 2 bolts
  • Refinished Steel Wheels with Industrial High Gloss Finish
  • Re-design neck lifting arm to work properly with kingpin in forward kingpin hole
  • Repair main framerail webb rust damage done by factory installed webb plate at rear of main deck (salt buildup between plates)
  • Mount lights in side rails directly
  • Build new replaceable aluminum rear light buckets
  • Install Genuine Lacriox cam tube protectors
  • Install single fitting grease metering system to grease all 12 points on both axles with a single fitting
  • Install permanent rear strobe lights to work on auxiliary wire
  • Repair all scaled rust damage to all locations prior to painting

THIS WAS A TURN KEY COMPLETE REBUILD
Video Part 1
Destruction
Phase



Video Part 2
Paint
Assembly
Trail King Step Deck
Repair Breakdown

  • Wheel Well Repair
  • Complete Sandblasting
  • Moderate Frame Arching
  • Disassembly/ Painting
  • Reassembly after painting
  • Removable rear light buckets
  • Industrial Epoxy
  • Industrial Polyurethane
  • Automotive Basecoat Clearcoat
  • Rear axle anti-skid when suspension dumped
